HMS Vanguard

Images 1 | 2 | 3 | 4

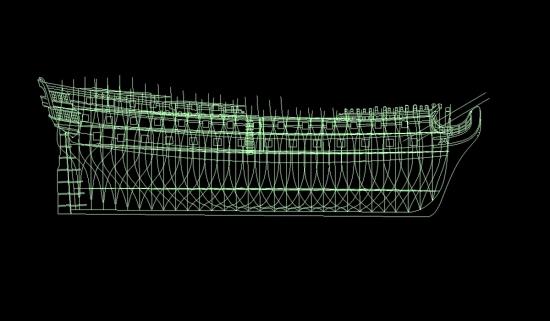

image of 3D HMS Vanguard model

Hull design completed, fairing the lines and designing the bow and stern details shown above. The design of frame/bulkhead hybrids being realized in mahogany shown below:

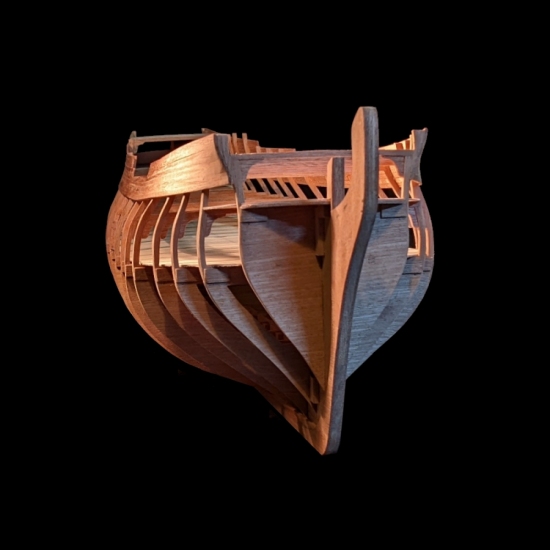

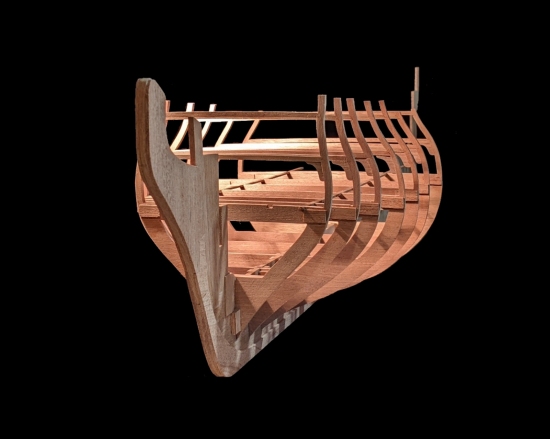

Frame design of Vanguard model
