HMS Diana

Images 1 | 2 | 3 | 4 | 5 | 6 Info | Construction

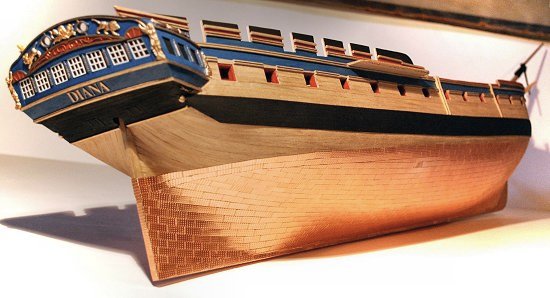

Diana's hull after coppering

Shown above is her hull shortly after coppering has been applied.

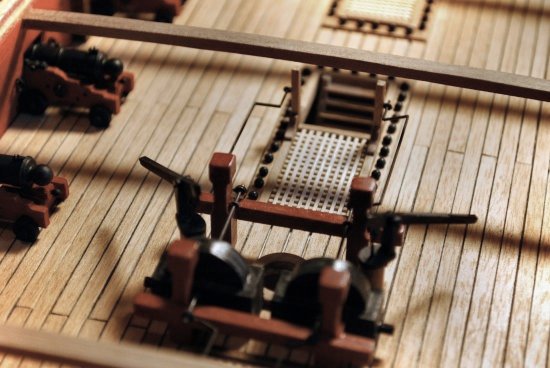

Gundeck detail and equipment of the HMS Diana; guns, chain and elm bilge pumps

Below-deck detail and equipment shown; capstan, chain and elm bilge pumps. British 18 Pounder cannon as carried on the HMS Diana's gun deck. She also carried 9 pounder cannon and 32 pounder carronades on her forecastle and quarter-deck.
