Model Yacht Design

Just like tall-ships, motor yachts and sailboats are custom designed to your yacht specifications and equipment. Each model is unique and build 100% from scratch. A side view of the CAD design of an extensively modified custom 78' North Coast model is shown below.

CAD plan-view of a 78' North coast motor-yacht model

Model yacht design differs in many ways from model tallship design simply because of the different elements and materials each is/was made of. The hull is designed similarly for both. Shown below are the sections required to create any scale hull of a Johnson 87' super-yacht.

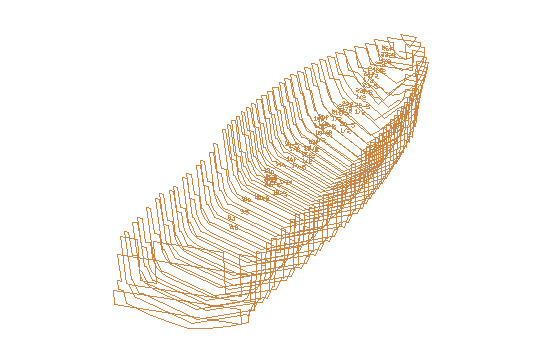

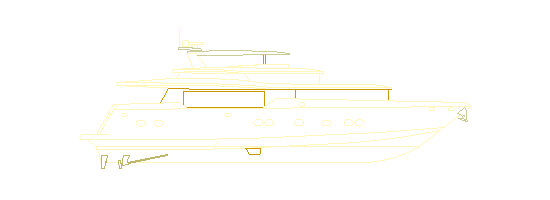

Side view of a Johnson 87' yacht model design Wireframe sections of a Johnson 87' super-yacht hull
